Smart Solar Power for a Smarter Future
Transforming Sunlight into Clean, Reliable Energy
V-Guard On-Grid Solar Power Systems are engineered for modern homes and commercial establishments seeking high efficiency, seamless grid synchronization, and substantial electricity cost reductions.
"Generate clean electricity directly from sunlight and make smarter use of every unit of solar energy."
- High-efficiency DC-to-AC power conversion
- Seamless grid-connected operation with surplus power export
- Reliable battery-free configuration for simplified maintenance
Meet SolSmart 15KT & SOLRIGO
Advanced On-Grid PV Inverter Technology for Maximum Conservation

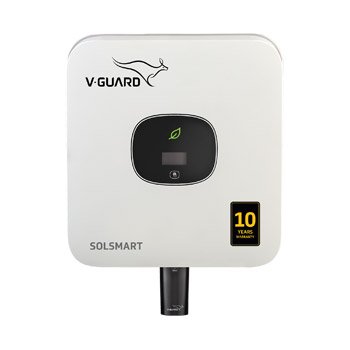

SolSmart 15KT 3P
SolSmart 15KT Three Phase On-Grid PV inverter delivers 22500W input power with an exceptional 98.60% efficiency, OLED touch control, and FR-grade polycarbonate chemical resistance.
V-Guard SOLRIGO
Advanced On-Grid PV Inverter designed for robust residential and light commercial three-phase installations. Offers compact architecture, Wi-Fi smart monitoring, and rugged build quality.
How V-Guard On-Grid Solar Works
SUNLIGHT
Photons strike solar modules with high radiant energy.
SOLAR PANELS
Clean conversion of sunlight into direct current (DC) electricity.
INVERTER
SolSmart & Solrigo inverts DC to high-grade AC power.
HOME / BUSINESS
Instantaneous power supply for electrical loads and appliances.
GRID EXPORT
Surplus power exported back to the utility grid under net metering.
"Solar panels capture sunlight and generate DC electricity. The SolSmart & Solrigo inverters convert it into AC power for your electrical loads. Excess generation can be exported to the grid where permitted, while additional electricity can be drawn from the grid when solar generation is insufficient."
Engineered for Efficient Solar Performance
HIGH CONVERSION EFFICIENCY
Maximum efficiency of up to 98.60% helps make effective use of available solar energy.
WIDE MPPT RANGE
Extensive MPPT voltage input range designed to optimize solar energy harvesting across conditions.
SMART WI-FI MONITORING
Free Wi-Fi dongle and mobile app integration to monitor real-time generation and 25-year cloud data storage.
ADVANCED SAFETY
Integrated DC switch along with robust DC and AC surge protection for maximum operational security.
WIDE TEMPERATURE RANGE
Designed to operate reliably across demanding environmental temperatures from -25°C to 60°C.
COMPACT & LIGHTWEIGHT
Lightweight construction with FR-grade polycarbonate making it resistant to chemicals and easy to install.
BATTERY-FREE OPERATION
Direct grid-connected operation without the need for expensive or maintenance-heavy battery storage.
OLED & TOUCH CONTROL
User-friendly OLED display and touch control interface to configure system parameters easily on-site.
Built with Protection in Mind
DC SWITCH
Integrated DC switching capability for immediate emergency isolation.
DC SURGE PROTECTION
Robust protection against high-voltage DC electrical surges.
AC SURGE PROTECTION
Additional AC-side surge protection ensuring grid stability.
TMOV + FILTER
Advanced integrated protection components for electrical safety.
Technical Specifications
Comprehensive performance parameters for SolSmart 15KT & Solrigo inverters
| Technical Parameter | SolSmart 15KT 3P | Solrigo Standard |
|---|---|---|
| Recommended Max PV Input | 22500 W | 6000 W |
| Maximum DC Voltage | 1000 V | 1000 V |
| Nominal / Start Voltage | 580 V DC / Start 140V | Start 180 V |
| MPPT Voltage Range | 140–1000 V DC | 150–1000 V DC |
| Grid Connection | Three Phase | Three Phase |
| Maximum Efficiency | 98.60% | 97.5% |
| Max Output Current | 25 A | Standard |
| Surge & TMOV Protection | DC & AC TMOV + Filter | DC & AC TMOV + Filter |
| Enclosure & Monitoring | FR Polycarbonate + OLED + Wi-Fi | Standard Enclosure + Wi-Fi |
| Warranty | 10 Years | 8 Years* |
Why Choose an On-Grid Solar System?
REDUCE ELECTRICITY EXPENSES
Cut down monthly utility bills significantly by generating your own clean electricity.
GENERATE CLEAN ENERGY
Contribute directly to global sustainability and reduce your carbon footprint.
OPTIMIZE YOUR ROOFTOP
Make better, productive use of unused rooftop space with high-density solar modules.
NO BATTERY STORAGE REQUIRED
Eliminate battery maintenance costs and storage degradation issues entirely.
SMART ENERGY MONITORING
Keep track of voltage, power generation, and savings instantly via mobile app.
LOWER MAINTENANCE
Solid-state inverter design with FR-grade polycarbonate ensures hassle-free upkeep.
SURPLUS POWER EXPORT
Export excess generation back to the grid under applicable net-metering regulations.
LONG-TERM VALUE
Secure durable energy independence backed by up to 10 years of reliable V-Guard warranty.
Solar Solutions for Every Space
Why Choose V-Guard?
EFFICIENCY
Industry-leading conversion up to 98.60%.
SMART MONITORING
Wi-Fi enabled mobile app & cloud storage.
SAFETY
TMOV surge protection & integrated DC switch.
RELIABLE DESIGN
FR-grade polycarbonate and robust engineering.
"V-Guard SolSmart and Solrigo combine efficient solar power conversion, intelligent cloud monitoring, advanced protection features, and practical design for modern grid-connected solar installations."
